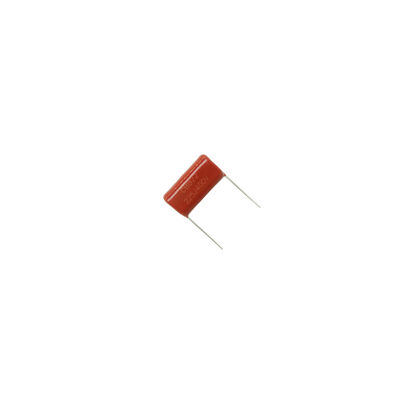

Metallized Polypropylene Film Capacitor CBB22 225J400V P15MM
Applied to air conditioning compressors, water pumps, etc.
Product Description
The Metallized Polypropylene Film Capacitor is an advanced electronic component designed to deliver exceptional performance and reliability in various applications. Known for its superior electrical characteristics, this capacitor type is widely used in circuits requiring stable capacitance, low loss, and high insulation resistance.
Key Features
- Product Name: Metallized Polypropylene Film Capacitor
- Type: Metalized Film Capacitor, Metallized Polypropylene Capacitor, Polypropylene Film Capacitor
- Capacitance Tolerance: +/-5%
- Dissipation Factor: ≤0.1
- Lead Type: Radial, Axial
- Lead Length: 5mm - 50mm
- Capacitance Range: 0.01uF - 2.2uF
Technical Parameters
| Parameter |
Value |
| Capacitance |
0.01uF - 2.2uF |
| Insulation Resistance |
>=10000MΩ |
| Operating Temperature |
-40°C ~ +85°C |
| Size |
Diameter: 6.3mm - 18mm; Length: 6.3mm - 20mm |
| Application |
Power Supply, Automotive, Industrial |
| Mounting Type |
Through-hole |
Applications
Ideal for use in consumer electronics, automotive electronics, industrial control systems, and telecommunications equipment. Perfect for signal filtering, noise suppression, and energy storage in audio systems, power supplies, and motor drives.
Customization Options
We provide various capacitance values ranging from 0.01uF to 2.2uF, with customizable lead length from 5mm to 50mm. Available in tape and reel packaging for automated assembly.
Support and Services
Comprehensive technical support including product datasheets, application notes, and design guidelines. Our engineering team provides consultation on best practices for mounting, handling, and usage.
Packing and Shipping
Each capacitor is individually wrapped in anti-static material and placed in sturdy, cushioned boxes. Bulk orders are organized in trays or reels. Multiple shipping options available including air freight, sea freight, and express courier services.
Frequently Asked Questions
Q1: What is the brand name of this Metallized Polypropylene Film Capacitor?
A1: The brand name of this capacitor is CL.
Q2: Where is the CL Metallized Polypropylene Film Capacitor manufactured?
A2: This capacitor is manufactured in China.
Q3: What are the typical applications of CL Metallized Polypropylene Film Capacitors?
A3: These capacitors are commonly used in power electronics, filtering, coupling, and decoupling applications, as well as in energy storage and pulse circuits.
