| 動作温度: | -55℃への+125℃ | パッケージ: | SMD/DIP |
|---|---|---|---|
| 誘電強度: | ≥3000VAC | 年齢化率: | ≤1% |
| 電力評価: | 0.5W~10W | 取り付けタイプ: | スルーホール |
| 流出電流: | ≤0.1mA | 絶縁抵抗: | ≥1000mΩ |
| クランプ電圧（VC）: | 保護レベル（8/20μs波形のテストなど）を反映して、インラッシュ電流で電圧値を指定することにより） | フロー容量（IP: | 耐えるための最大イングラッシュ電流（8/20μs波形の10kaなど |
| ハイライト: | 7D511K metal oxide varistor,1pF-1000pF capacitance varistor,industrial power module varistor |
||

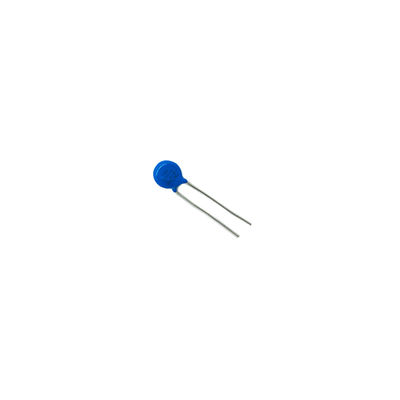

With ≤1% aging rate and ±20% resistance tolerance, designed for AC/DC input terminal protection in industrial power modules.
| Attribute | Value |
|---|---|
| Operating Temperature | -55℃ To +125℃ |
| Package | SMD/DIP |
| Dielectric Strength | ≥3000VAC |
| Aging Rate | ≤1% |
| Power Rating | 0.5W-10W |
| Mounting Type | Through-Hole |
| Leakage Current | ≤0.1mA |
| Insulation Resistance | ≥1000MΩ |
| Clamping voltage (Vc) | Specified voltage value at inrush current (tested under 8/20μs waveform) |
| Flow capacity (Ip) | Maximum inrush current withstand (e.g., 10kA under 8/20μs waveform) |
The Metal Oxide Varistor (MOV) is a Voltage-Dependent Resistor (VDR) designed to protect electrical circuits from overvoltage events. This component is crucial in safeguarding electronic devices by diverting excess voltage away from sensitive components.
Key attributes include:
This Metal Oxide Varistor (brand VDR) is available in models 7D, 10D, 14D, and 20D, providing over-voltage protection for:
Each varistor is individually protected in plastic casing and shipped in sturdy cardboard boxes with proper cushioning to prevent transit damage.
The brand name is VDR.
The available model numbers are 7D, 10D, 14D, and 20D.
This product is manufactured in China.
It protects electrical circuits from overvoltage spikes.
They are typically designed for one-time use after absorbing a significant surge and should be replaced.
