| 静電容量範囲: | 1pFから1000pF | 電圧範囲: | 6V-1500V |
|---|---|---|---|
| 動作温度: | -55℃への+125℃ | 製品名: | 金属酸化物バリスター |
| パッケージ: | SMD/DIP | 耐性耐性: | ±20％ |
| 材料: | 金属酸化物 | 取り付けタイプ: | スルーホール |
| 障害モード: | 短絡障害は一般的であり、ヒューズまたはサーマルトリッピングデバイス（TMOVなど）と一致する必要があります | ||
| ハイライト: | 10D511K metal oxide varistor,through-hole mounting varistor 10D511K,metal oxide varistor for ECU |
||

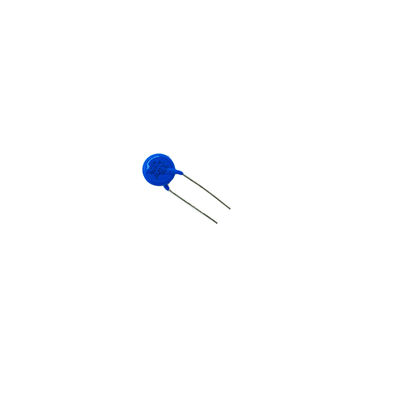

The Metal Oxide Varistor is a versatile electronic component that serves as a High-Voltage-Resistor, Transient-Voltage-Protector, and Surge-Arrestor-Device. With a wide power rating range of 0.5W to 10W, this varistor provides reliable protection against voltage spikes and surges in applications including ECU and car chargers.
| Attribute | Value |
|---|---|
| Capacitance Range | 1pF-1000pF |
| Voltage Range | 6V-1500V |
| Operating Temperature | -55℃ To +125℃ |
| Product Name | Metal Oxide Varistor |
| Package | SMD/DIP |
| Resistance Tolerance | ±20% |
| Material | Metal Oxide |
| Mounting Type | Through-Hole |
| Failure mode | Short circuit failure is common, and it needs to be matched with a fuse or thermal tripping device (such as TMOV) |
| Parameter | Value |
|---|---|
| Type | Varistor |
| Insulation Resistance | ≥1000MΩ |
| Power Rating | 0.5W-10W |
| Operating Temperature | -55℃ To +125℃ |
| Leakage Current | ≤0.1mA |
| Aging Rate | ≤1% |
The Metal Oxide Varistor (MOV) offers reliable protection against transient voltage spikes in various applications:
Available models: 7D, 10D, 14D, and 20D. Manufactured in China under brand name VDR with leakage current ≤0.1mA and insulation resistance ≥1000MΩ.
Varistors are packaged in anti-static bags within sturdy cardboard boxes with protective cushioning. Shipped via reliable courier with tracking provided.
