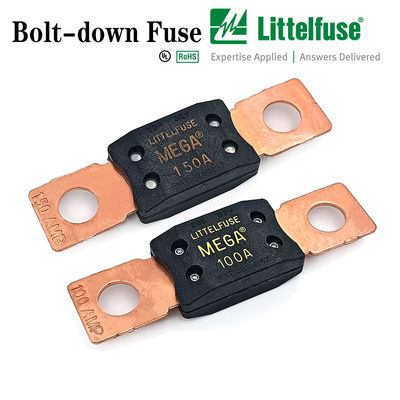

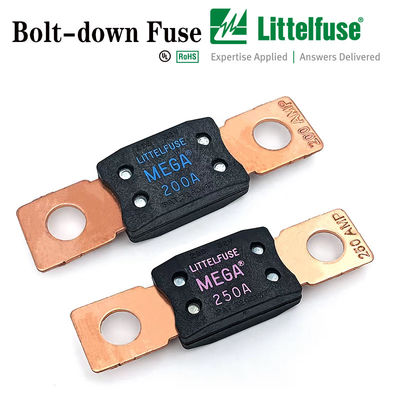

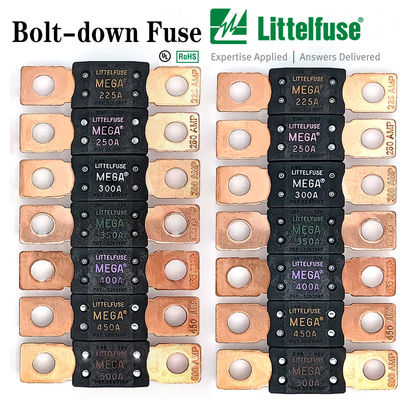

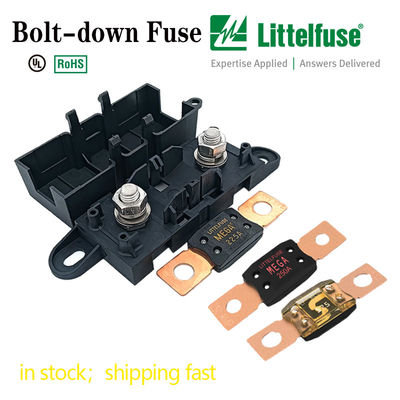

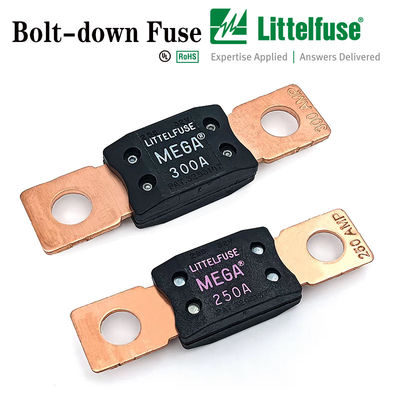

Name: MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V
Brand: Dongguan Chenglue Electronic co.,Ltd
SKU: マージュ
Price: 3 USD
Availability: InStock

MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V

大画像 : MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V

商品の詳細:

起源の場所:	シヤナ
ブランド名:	littelfuse
証明:	E71747
モデル番号:	マージュ

お支払配送条件:

最小注文数量:	500
価格:	3USD
パッケージの詳細:	200x200x200cm
支払条件:	T/T
供給の能力:	300000

連絡先

MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V

説明

ハイライト:

電気自動車用重用用用ファイューズ

32V 電動自動車用ファイューズ

電気自動車のシューズ

MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V 0
Description

MEGA® SLO-BLO® automotive fuses employ diffusion pill technology

to provide time-delay circuit protection. MEGA fuses are ideal for

use on batteries, alternators, and heavy gauge wire harnesses that

experience large inrushes of current. The MEGA SLO-BLO fuses with

ratings of 40 A to 250 A ensure continuous current flow. Use MEGA

fuses with ratings of 300 A to 500 A only for short circuit protection.
Features & Benefits

SEPCIFACATONGS

Voltage Rating: 32 V DC

Interrupting Rating: 2000 A @ 32 V DC

Recommended

Environmental Temperature:

–40 ˚C to +125 ˚C

Terminals Material: Copper (Silver plated copper available)

Housing Material: PPA-GF33HS

(U.L. 94 Flammability rating - HB)

Clear Top Housing Material: PES (top)

(U.L. 94 Flammability rating - V0)

PPA-GF33HS (bottom)

(U.L. 94 Flammability rating - HB)

Mounting Torque M6: 8-14 Nm

Mounting Torque M8: 12-18 Nm

Comply With: ISO 8820-5

Dimensions

MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V 2
